Accessories for OCTG 2

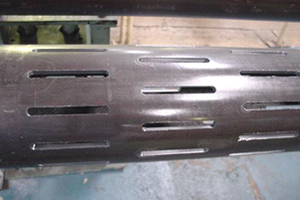

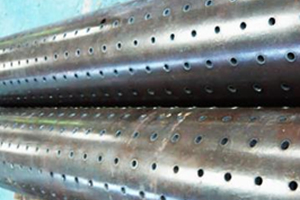

Screen pipe

Screen pipe

Screen pipe

Screen pipes are steel tubes in which holes are machined on the tube outer surface in order to extract oil, gas, etc. JFE Tubic produces screen pipes with the customer's specified hole shape and open area ratio.
By using a state-of-the-art laser beam machine, it is possible to manufacture long strainer pipes with a maximum length of 12 m.
Both slit-type and hole-type are available. Please consult with JFE Tubic regarding specific hole shape, number of holes, and open area ratio requirements.

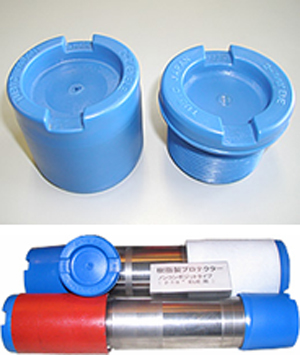

Resin protector

Resin protector

The JFE Tubic resin protector is an environment-friendly non-composite type that can be recycled or disposed of easily. (Normally, a steel/resin composite type is used in order to secure strength, but direct recycling/disposal of this conventional type is not possible.)

These products have passed the following API-recommended service tests.

  • Drop-weight impact tests
    (vertical, inclined 45°, side)
  • Vibration test (106 cycles)
  • Corrosion test (1000 hr in salt water)
  • Solvent resistance tests
    (diesel oil, acetone, Versol, etc.)
  • Ultraviolet resistance test (1 year or more)
  • Tensile test (axial direction)


Patents
1. Patent No. 2003-034046
2. Patent No. 2003-204790

Processing equipment of screen pipe
